Super Phone 500 TC-500G
Tokai Wireless Co.,Ltd., Tokyo
- Country
- Japan
- Manufacturer / Brand
- Tokai Wireless Co.,Ltd., Tokyo
- Year
- 1963–1968 ?
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 99360
-
- Brand: Million
Werbung in der Funkschau Nr. 7, 1964

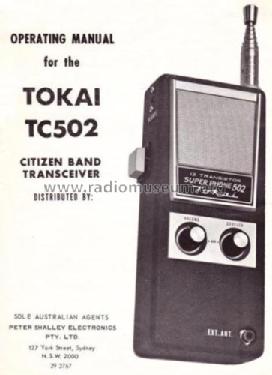

Operating manual
Operating manual
- Number of Transistors
- 13
- Semiconductors
- Main principle
- Transceiver; ZF/IF 455 kHz
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Batteries / addl. power jack / 8 x 1,5 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Super Phone 500 TC-500G - Tokai Wireless Co.,Ltd., Tokyo
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 90 x 210 x 40 mm / 3.5 x 8.3 x 1.6 inch
- Notes
- Zweikanal AM-Handfunksprechgerät, Anschluß für Zusatzantenne und separater Stromversorgung. Deutsche FTZ-Nr. K-427/63. Antenna lenght: 1370 mm.
- Net weight (2.2 lb = 1 kg)
- 1.8 kg / 3 lb 15.4 oz (3.965 lb)
- Author
- Model page created by a member from D. See "Data change" for further contributors.
