• Country
• Japan

• Manufacturer / Brand
• Tokai Wireless Co.,Ltd., Tokyo

• Year
• 1971 ??

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 121864

• • Brand: Million

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• 2SA234 2SA350 2SA350 2SA12 2SA12 2SB75 2SB75 2SB75 2SB77 2SB370 2SB370 2SC116 2SC150

• Main principle
• Transceiver; ZF/IF 455 kHz; 3 AF stage(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Dry Batteries / 8 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

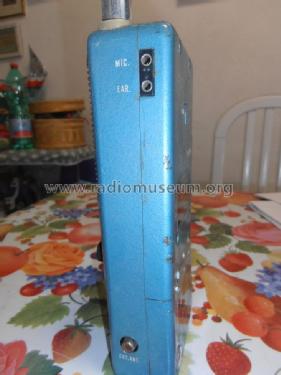

• Model: TC1603G - Tokai Wireless Co.,Ltd., Tokyo

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 90 x 210 x 40 mm / 3.5 x 8.3 x 1.6 inch

• Notes

• Handheld, AM, 3 Xtal channels.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Price in first year of sale
• 395.00 DM

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
