• Country
• Japan

• Manufacturer / Brand
• Tokai Wireless Co.,Ltd., Tokyo

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79934

• • Brand: Million

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• NTC-Resistor 2SA53 2SA53 2SA53 2SB54 2SB56 2SB56 1N60

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

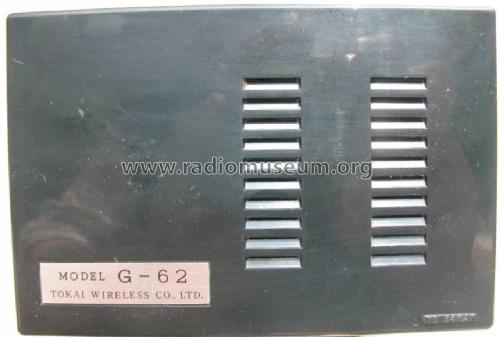

• Model: Vesper G-62 - Tokai Wireless Co.,Ltd., Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 115 x 80 x 35 mm / 4.5 x 3.1 x 1.4 inch

• Notes
• Ohrhörerbuchse

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Rudolf HEINZ. See "Data change" for further contributors.
