• Country
• Japan

• Manufacturer / Brand
• Tokyo Transistor Industry Co., LTD.; Tokyo

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 154617

• • Brand: Candle

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2SA102 2SA101 2SA101 2SB175 2SB171 2SB172 2SB172

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / UM-5: 2 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Candle Micro Radio MTR-716 - Tokyo Transistor Industry Co.,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 1.7 x 2.65 x 0.8 inch / 43 x 67 x 20 mm

• Notes

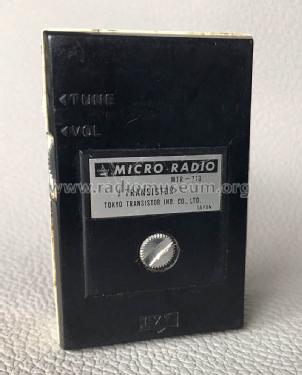

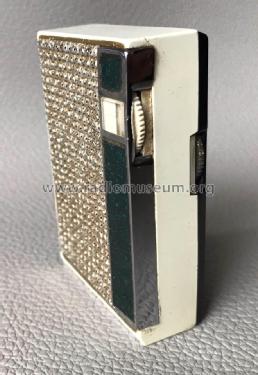

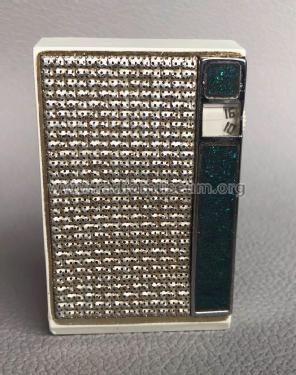

• Candle Micro Radio MTR-716, 7 Transistor.
  Wrist strap, dial window, earphones jack, chrome simulated front, SA & SB transistor types, sold in hard case with earphone & accessories.

  See also Pee-Wee MTR-716.

• Net weight (2.2 lb = 1 kg)
• 0.077 kg / 0 lb 2.7 oz (0.17 lb)

• Source of data
• -- Original-techn. papers.
