Skylark NR-52-F1
Tokyo (brand)
- Country
- Japan
- Manufacturer / Brand
- Tokyo (brand)
- Year
- 1975 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 112035
D_Marc_NR-52 F1_Innenansicht.jpg
NR-52-F1

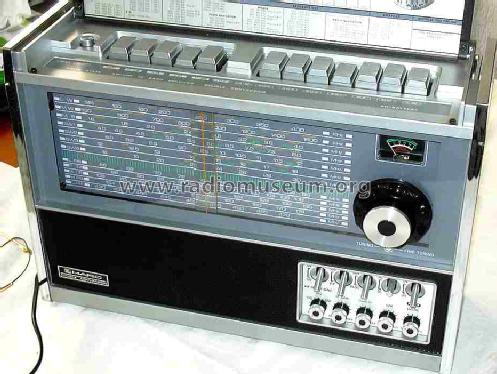

D_Marc_NR-52 F1_Frontansicht.jpg
Kaunas Lithuania
STS Archív.
STS Archív.
STS Archív.
STS Archív.
STS Archív.
STS Archív.
STS Archív.

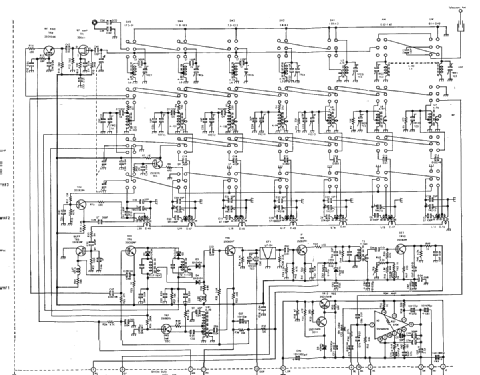

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 17
- Semiconductors
- Main principle
- Superhet, double/triple conversion
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Line / Batteries (any type) / 110-220 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Skylark NR-52-F1 - Tokyo brand
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 400 x 275 x 125 mm / 15.7 x 10.8 x 4.9 inch
- Notes
-
AM-Empfangsbereich: 145 kHz - 30 MHz, FM 65-108 MHz, VHF ca. 145-175 MHz, UHF ca. 430 - 470 MHz: SW 1-4, AM, LW, MW, MB, AIR; Regler für Volume, Tone, Squelch, RF-Gain, LSB/BFO/USB, VHF-Double-Converter, 2 Antennen. Wurde auch unter dem Namen MARC mit gleicher Modell-Nr. vertrieben
Siehe auch Space Commander ICF-2003DX.
- Net weight (2.2 lb = 1 kg)
- 5.2 kg / 11 lb 7.3 oz (11.454 lb)
- Author
- Model page created by Thorsten Brandenburg. See "Data change" for further contributors.
- Other Models
-
Here you find 12 models, 12 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Tokyo (brand)
Collections
The model Skylark is part of the collections of the following members.
Forum contributions about this model: Tokyo brand: Skylark NR-52-F1
Threads: 1 | Posts: 3
Hello,
Here´s the simple clou how to date these japanese world receivers, regardless if branded als Tokyo Skylark, Marc, Shebro or Globephone ICF-2003DX : Just look at the small paper sheet with the "FINAL INSPECT. NO.", in the battery compartment. The first left 2 digits show the year (known values in 2020 are 76-79), followed by the month (known values in 2020 are 01-11). The last 4 right digits give the actual series- No. I´m quite sure they started the series- No. with 0001 at the beginning of every new month.
For this result, I inspected about 15 devices (radiomuseum.org, ebay, further internet pics, own receiver). While maintaining my own "Skylark" I carefully inspected it for for further dating hints, but found no other (except the SN76007 integrated AF Amp datecode)
Boris Witke
Boris Witke † 9.2024, 19.Sep.20
