Winston Solid State Multi Band AC/DC 9333 (Japan 712)

Tokyo Transistor Industry Co., LTD.; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Tokyo Transistor Industry Co., LTD.; Tokyo

Year
1969 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
339419

- Brand: Candle

Schematics

Winston Solid State Multi Band AC/DC 9333 ; Tokyo Transistor (ID = 2779600) Radio — Tokyo Transistor Winston Solid State Multi Band AC/DC 9333 (2)

Winston Solid State Multi Band AC/DC 9333 ; Tokyo Transistor (ID = 2779601) Radio — Tokyo Transistor Winston Solid State Multi Band AC/DC 9333 (2)
eBay seller sv1979, item # 234630035502

Winston Solid State Multi Band AC/DC 9333 ; Tokyo Transistor (ID = 2779604) Radio — Tokyo Transistor Winston Solid State Multi Band AC/DC 9333 (2)

Winston Solid State Multi Band AC/DC 9333 ; Tokyo Transistor (ID = 2779602) Radio — Tokyo Transistor Winston Solid State Multi Band AC/DC 9333 (2)

Winston Solid State Multi Band AC/DC 9333 ; Tokyo Transistor (ID = 2779603) Radio — Tokyo Transistor Winston Solid State Multi Band AC/DC 9333 (2)
eBay seller sv1979, item # 234630035502

Winston Solid State Multi Band AC/DC 9333 ; Tokyo Transistor (ID = 2779605) Radio — Tokyo Transistor Winston Solid State Multi Band AC/DC 9333 (2)

Winston Solid State Multi Band AC/DC 9333 ; Tokyo Transistor (ID = 2779606) Radio — Tokyo Transistor Winston Solid State Multi Band AC/DC 9333 (2)

Winston Solid State Multi Band AC/DC 9333 ; Tokyo Transistor (ID = 2779607) Radio — Tokyo Transistor Winston Solid State Multi Band AC/DC 9333 (2)

Winston Solid State Multi Band AC/DC 9333 ; Tokyo Transistor (ID = 2779608) Radio — Tokyo Transistor Winston Solid State Multi Band AC/DC 9333 (2)

Winston Solid State Multi Band AC/DC 9333 ; Tokyo Transistor (ID = 2779609) Radio — Tokyo Transistor Winston Solid State Multi Band AC/DC 9333 (2)
eBay seller sv1979, item # 234630035502

Technical Specifications

Number of Transistors
18

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
Wave Bands given in the notes.

Power type and voltage
Line / Batteries (any type) / 117 or D: 4 x 1.5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
1.6 W (unknown quality)

Material
Leather / canvas / plastic - over other material

from Radiomuseum.org
Model: Winston Solid State Multi Band AC/DC 9333 - Tokyo Transistor Industry Co.,

Shape
Portable set > 8 inch (also usable without mains)

Notes

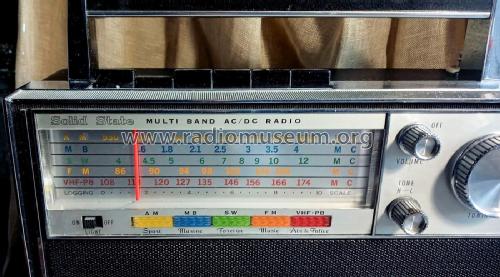

Winston Solid State Multi Band AC/DC 9333 Radio:

FM: 86 - 108 MHz,
AM: 530 - 1600 kHz,
SW: 4 - 12 MHz,
MB: 1.6 - 4 MHz,
VHF/PB: 108 - 174 MHz,
AFC button, tone control, dial light, band indicator.

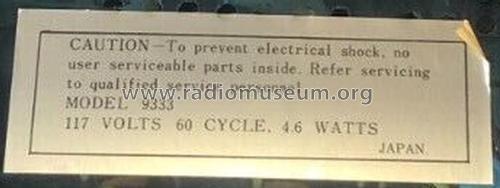

Power consumption max. 4.6 W

Material: 4mm cardboard covered with Vinyl.

Very similar models are the Brookwood 9333, Craftsman 9333 and Candle TK-1848.
The UK version is the Waltham TK-1848L.

Made in Japan 712

Author
Model page created by Jerry Elarton. See "Data change" for further contributors.
