Speaker D.C.U. 41
Tonalit Gramophon Rt.; Budapest
- Country
- Hungary
- Manufacturer / Brand
- Tonalit Gramophon Rt.; Budapest
- Year
- 1935–1943
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 247293
- Wave bands
- - without
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16.5 cm = 6.5 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Speaker D.C.U. 41 - Tonalit Gramophon Rt.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 165 x 165 x 100 mm / 6.5 x 6.5 x 3.9 inch
- Notes
-
3 W.
- Price in first year of sale
- 16.50 Pengő
- Literature/Schematics (1)

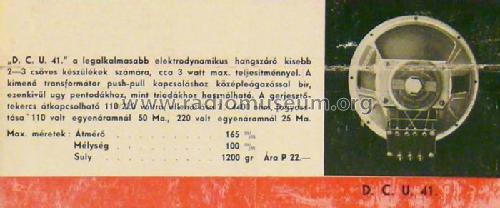

- Barta és Társa Árjegyzék - BAPO 51, BP. 1936.
- Literature/Schematics (2)
- Márton Pál Rádióalkatrész Árjegyzék, Budapest 1936/37.
- Literature/Schematics (3)
- Rádió és Villamosság, 1935.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
