• Country
• Hungary

• Manufacturer / Brand
• Tonalit Gramophon Rt.; Budapest

• Year
• 1934–1936

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 215815

• Wave bands
• - without

• Power type and voltage
• Direct Current supply (DC) / 110; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 27 cm = 10.6 inch

• Material
• Metal case

• from Radiomuseum.org

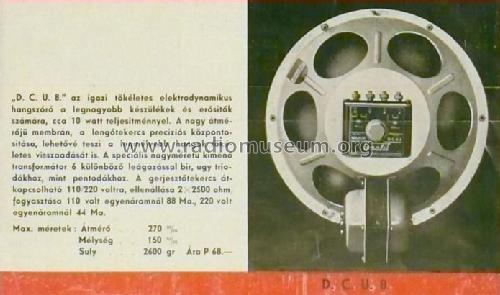

• Model: Speaker DCU 8 - Tonalit Gramophon Rt.;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 270 x 270 x 150 mm / 10.6 x 10.6 x 5.9 inch

• Notes
• With transformer, 10 W.

• Price in first year of sale
• 102.00 Pengö

• Literature/Schematics (1)
• Rotand Rádió Árjegyzék, 1935-36.

• Literature/Schematics (2)
• Barta és Társa Árjegyzék - BAPO 51, BP. 1936.

• Literature/Schematics (3)
• Rádió és Villamosság, 1934.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
