7046M Export

• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 196178

• Picture
• Schematics

Previous Next

Previous Next

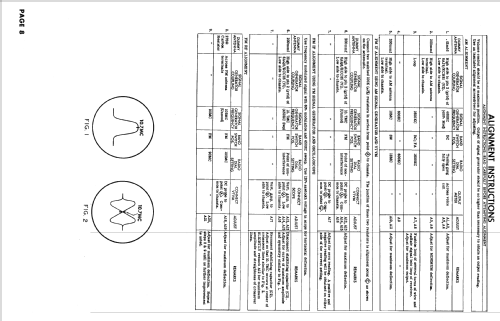

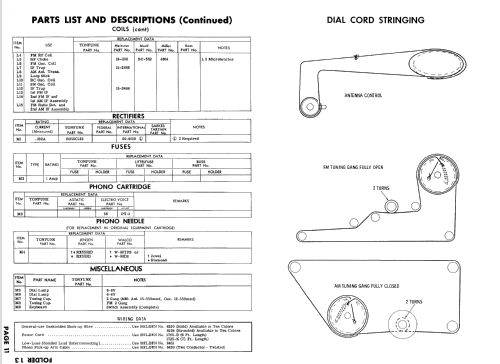

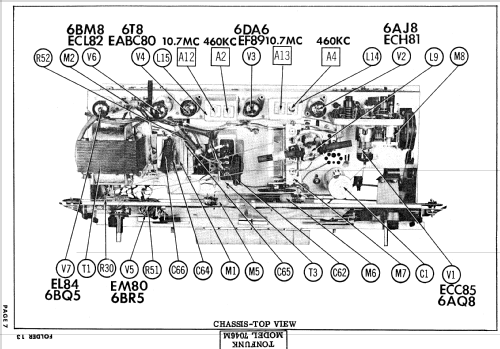

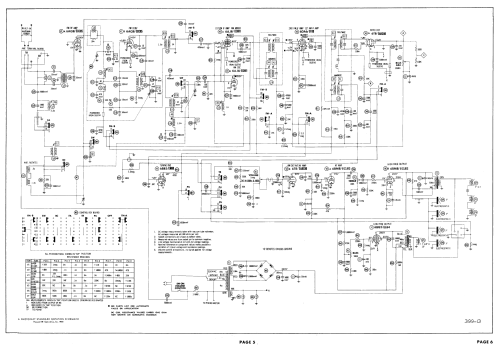

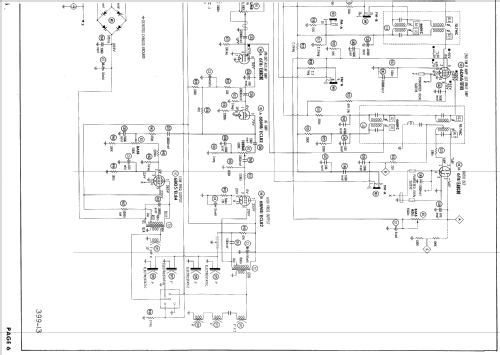

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6AQ8 6AJ8 6DA6 6T8 6BR5 6BM8 6BQ5

• Main principle
• Superhet with RF-stage; ZF/IF 460 / 10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117 = 110 -120 Volt

• Loudspeaker
• 7 or more Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 7046M [Export] - Tonfunk GmbH; Karlsruhe

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• The Tonfunk Model 7046M is an AC operated 8 tubes FM-BC-SW receiver with 3 speed automatic record changer.
  Supplier: Videola-Erie Corp., 75 Front Str., Brooklyn, N. Y.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 5-58, Set 399, Folder 13)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.

• Other Models

• Here you find 570 models, 333 with images and 239 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Tonfunk GmbH; Karlsruhe
