• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1957/1958

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 99843

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• PCC88 PCF82 EF85 EF85 EM71 EF89 EF80 EAA91 PL83 ECC85 ECH81 EBF89 EC92 EF80 PCL82 ECC81 PCL82 EAA91 ECL80 PL36 PY81 EY86 AW43-80

• Number of Transistors

• Semiconductors
• OA85 RL232 RL232

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Record Player (not changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

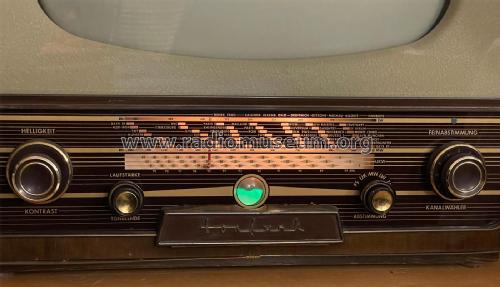

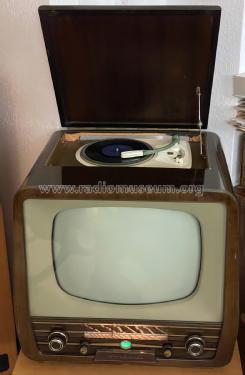

• Model: Bildjuwel 717R-Ph - Tonfunk GmbH; Karlsruhe

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 540 x 420 mm / 21.7 x 21.3 x 16.5 inch

• Notes

• mit organisch eingebautem Rundfunkteil, 6/11 Kreise, LMU.
  Phono-Chassis = Philips NG1260.

  Das Handbuch des Rundfunk- und Fernseh-Grosshandels 1957/58 führt irrtümlich das Philips Phono-Chassis AG1003 (Wechsler).

  Siehe auch Tonfunk Bildjuwel 717R ohne Plattenspieler.

• Net weight (2.2 lb = 1 kg)
• 31 kg / 68 lb 4.5 oz (68.282 lb)

• Price in first year of sale
• 1,150.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Mentioned in
• Handbuch RFP 1957 (1957/58 S. 206)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
