Classic W721
Tonfunk GmbH; Karlsruhe
- Country
- Germany
- Manufacturer / Brand
- Tonfunk GmbH; Karlsruhe
- Year
- 1954/1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 343988
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- Selengleichrichter
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz; Export model
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Classic W721 - Tonfunk GmbH; Karlsruhe
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 910 x 760 x 375 mm / 35.8 x 29.9 x 14.8 inch
- Notes
-
Tonfunk Classic Typ W721 ist ein Exportmodell für Spanien und Portugal. Der Musikschrank enthält den Plattenwechsler Perpetuum Ebner Rex A.
Wellenbereiche:
- MW = 185 - 580 m
- SW1 = 13 - 27 m
- SW2 = 28 - 52 m
- SW3 = 50 - 185 m
- FM = 87 - 101 MHz

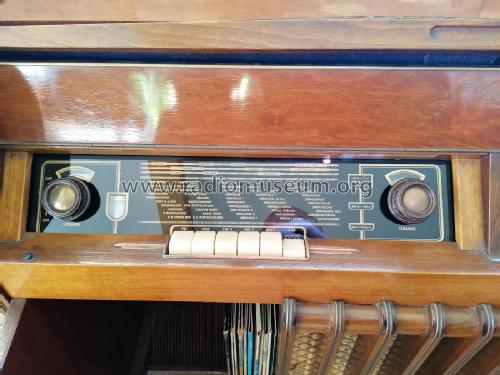

- Quadrante escrito em Ingles.
- Versão de exportação com 3 gamas de onda curta.
- Não tem onda longa.
- Pode armazenar até 100 discos.

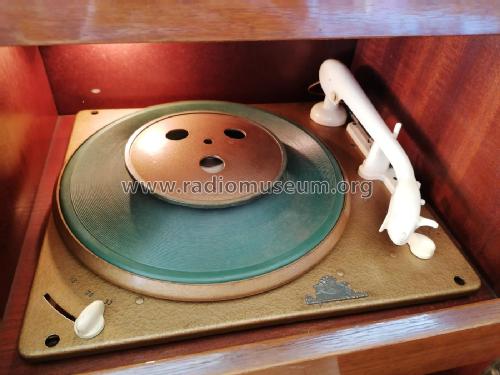

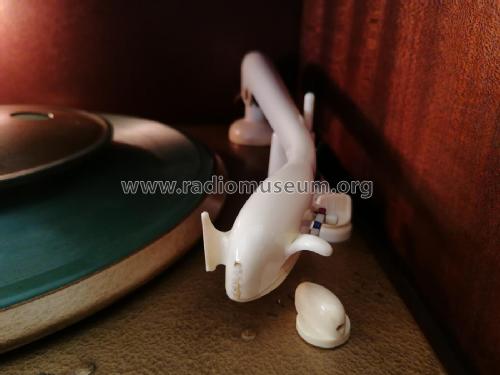

- Gira-discos Perpetuum-Ebner Rex A.
- Net weight (2.2 lb = 1 kg)
- 35 kg / 77 lb 1.5 oz (77.093 lb)
- Author
- Model page created by Francisco Martins. See "Data change" for further contributors.
