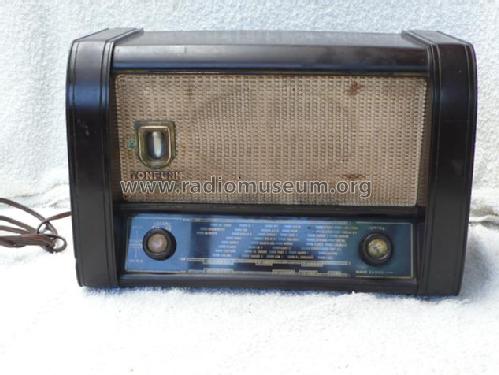

Gaiato 2 (II)
Tonfunk GmbH; Karlsruhe
- Country
- Germany
- Manufacturer / Brand
- Tonfunk GmbH; Karlsruhe
- Year
- 1958 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 251409
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Gaiato 2 - Tonfunk GmbH; Karlsruhe
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 315 x 215 x 165 mm / 12.4 x 8.5 x 6.5 inch
- Net weight (2.2 lb = 1 kg)
- 4.350 kg / 9 lb 9.3 oz (9.581 lb)
- Price in first year of sale
- 1,500.00 PTE
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
