• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1954 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 240318

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); Export model

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

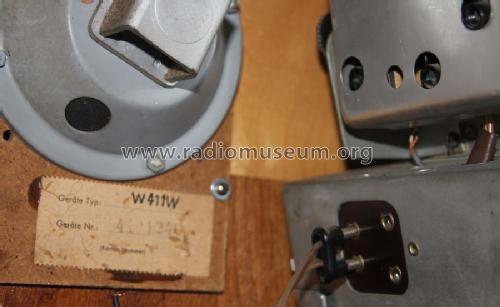

• Model: Magnus W411W - Tonfunk GmbH; Karlsruhe

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 856 x 512 x 350 mm / 33.7 x 20.2 x 13.8 inch

• Notes

• Exportgerät mit englischer Skalenbeschriftung. Ausführung W411W mit Plattenwechlser.

• Author
• Model page created by Júlio Branco. See "Data change" for further contributors.
