• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17358

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EC92 ECH81 EF41 EF41 EM4 EABC80 EL84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

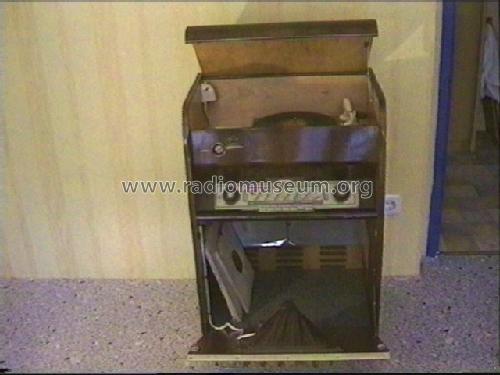

• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

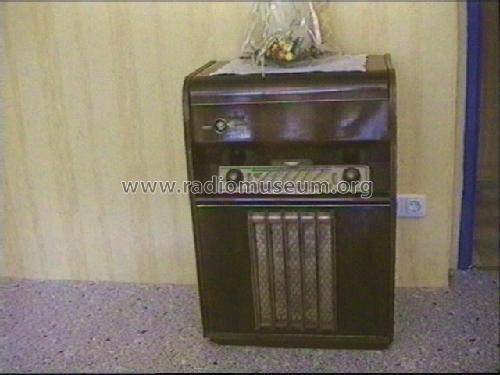

• Model: Schrank W602 Ch= W302 - Tonfunk GmbH; Karlsruhe

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 560 x 780 x 390 mm / 22 x 30.7 x 15.4 inch

• Notes
• FS-Ton;Wechsler . Dial lamps: 4x 6,3V/0,3A.

• Net weight (2.2 lb = 1 kg)
• 28.2 kg / 62 lb 1.8 oz (62.115 lb)

• Price in first year of sale
• 628.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 2, Ernst Erb
