• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17407

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

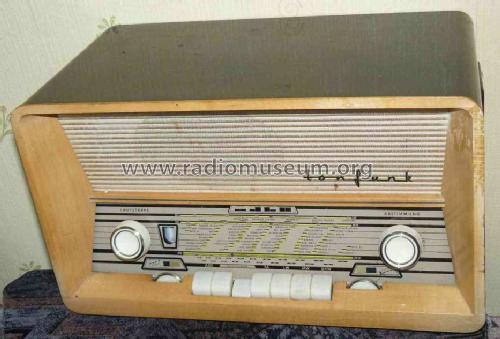

• Model: Tonkristall I 58M W2177 - Tonfunk GmbH; Karlsruhe

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 470 x 290 x 230 mm / 18.5 x 11.4 x 9.1 inch

• Notes
•

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 289.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 2, Ernst Erb
