Trans 59 alt
Tonfunk GmbH; Karlsruhe
- Country
- Germany
- Manufacturer / Brand
- Tonfunk GmbH; Karlsruhe
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 17419

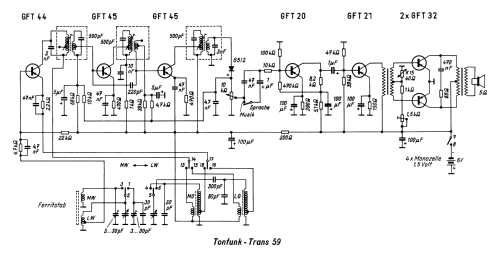

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 4 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 1 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Trans 59 [alt] - Tonfunk GmbH; Karlsruhe
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 260 x 160 x 70 mm / 10.2 x 6.3 x 2.8 inch
- Notes
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Price in first year of sale
- 249.00 DM
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59 / Radiokatalog Band 2, Ernst Erb
