• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1954/1955

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 19928

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PCC84 PCC85 EF80 EF80 EF80 EF80 EAA91 PL83 EF80 PABC80 PL82 ECL80 PCL81 PL81 PY81 ECL80 EY51 MW43-64

• Number of Transistors

• Semiconductors
• OA50 OA50 E220C350

• Main principle
• Superheterodyne (common); ZF/IF 26500 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

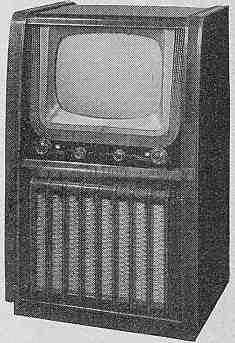

• Model: Violetta FTB1311 - Tonfunk GmbH; Karlsruhe

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 630 x 975 x 500 mm / 24.8 x 38.4 x 19.7 inch

• Notes

• 10 VHF-Kanäle + 2 Reserve.

  Zur Normalausstattung gehört ein Fernbedienungsgerät mit Rändelrädern für Bildhelligkeit, Kontrast und Lautstärke.

• Net weight (2.2 lb = 1 kg)
• 50.5 kg / 111 lb 3.7 oz (111.233 lb)

• Price in first year of sale
• 1,290.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funk-Technik (FT) (17/1954, S. 465 / Neuvorstellung)
