• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 89191

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UM4 UY41

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

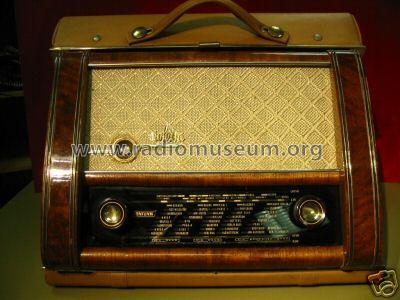

• Model: Heim- und Reise- Violetta GW [U-Röhren] - Tonfunk GmbH; Karlsruhe

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 410 x 300 x 130 mm / 16.1 x 11.8 x 5.1 inch

• Notes
• Violetta GW von Tonfunk kann man über ein getrenntes Zusatzgerät (Zerhacker) an einer Autobatterie betreiben. Auch mit UKW lieferbar, dann 388.-DM. Reise-Violetta GW von Tonfunk mit U-Röhren ist in einem eleganten Leder-Transportkoffer eingebaut.

• Price in first year of sale
• 298.00 DM

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Kat.d.Rundf.GrossH.1951/52

• Literature/Schematics (1)

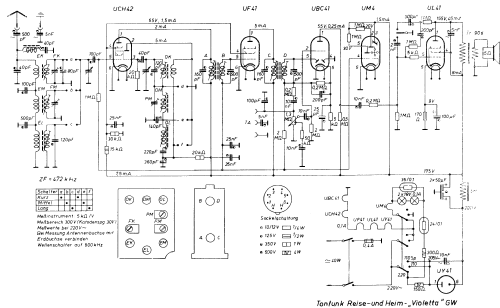

• -- Schematic

• Author
• Model page created by Thomas Welti. See "Data change" for further contributors.
