• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25175

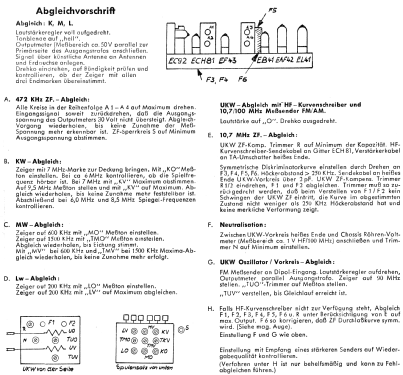

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EC92 ECH42 EF43 EB41 EM4 EAF42 EL41 AZ1 or

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468(473)/1 kHz

• Tuned circuits
• 6 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

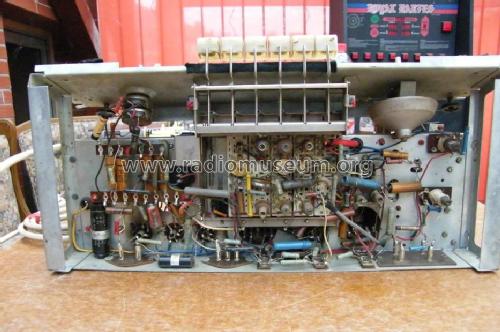

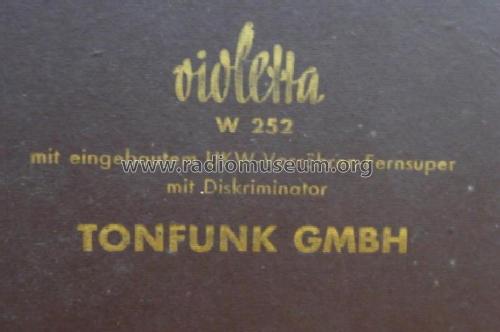

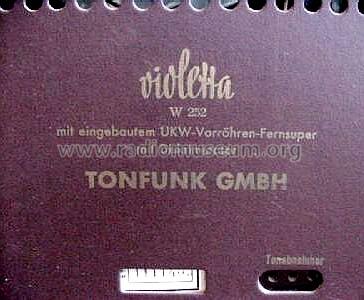

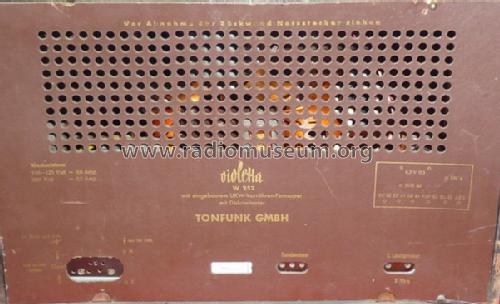

• Model: Violetta W252 [EC92] - Tonfunk GmbH; Karlsruhe

• Shape
• Tablemodel with Push Buttons.

• Notes
• teilweise mit Trockengleichrichter !

• External source of data
• Rutishauser/EE

• Source of data
• Radiokatalog Band 2, Ernst Erb
