Violetta W301 mit ECH42 + EB41
Tonfunk GmbH; Karlsruhe
- Country
- Germany
- Manufacturer / Brand
- Tonfunk GmbH; Karlsruhe
- Year
- 1952/1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 342159
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 472/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

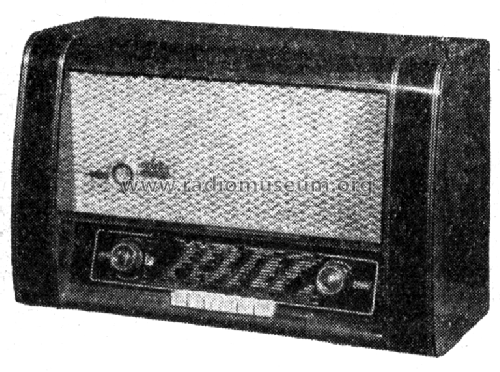

- Model: Violetta W301 [mit ECH42 + EB41] - Tonfunk GmbH; Karlsruhe
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 550 x 360 x 280 mm / 21.7 x 14.2 x 11 inch
- Notes
-
Tonfunk Violetta W301 mit ECH42 und EB41. Siehe auch W301 mit ECH81 und EB41.
- Price in first year of sale
- 348.00 DM
- Mentioned in
- Rundfunk-Katalog 1952/53 Lange Solingen, Hrsg. H.J. Thiele, Verlag Funk-Kurier Helmstedt
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
