• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 186960

• Number of Tubes
• 7

• Valves / Tubes
• EC92 ECH81 EF41 EAF42 EM80 EABC80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

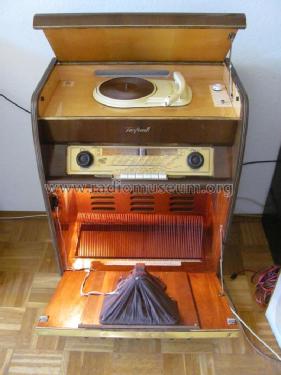

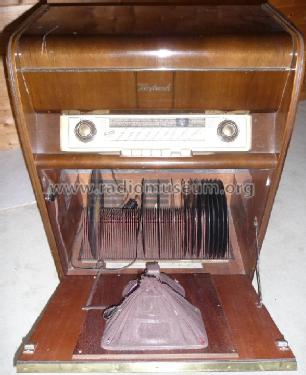

• Model: Violetta W521 Ch= W321 - Tonfunk GmbH; Karlsruhe

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 570 x 740 x 360 mm / 22.4 x 29.1 x 14.2 inch

• Notes
• Das Gerät verfügt über 1 Ortsendertaste, die Abstimmung erfolgt von hinten.
  Eingang für Fernseh-Ton (ZF, 21 MHz) vom passenden Tonfunk-Bildempfänger FB311 oder FB211.
  Der PE Plattenspieler hat 3 Geschwindigkeiten: 33, 45, 78 U/min.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Wolfram Zylka. See "Data change" for further contributors.
