• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 262343

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF42 EF42 ECH42 EBF80 EFM11 EL41 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

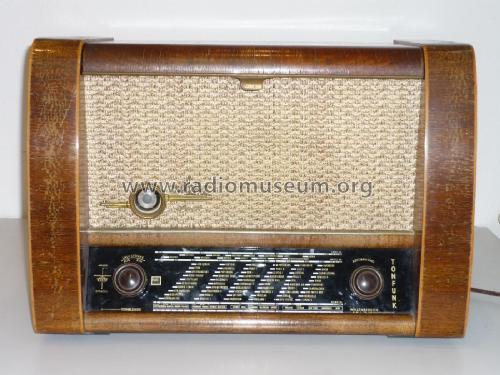

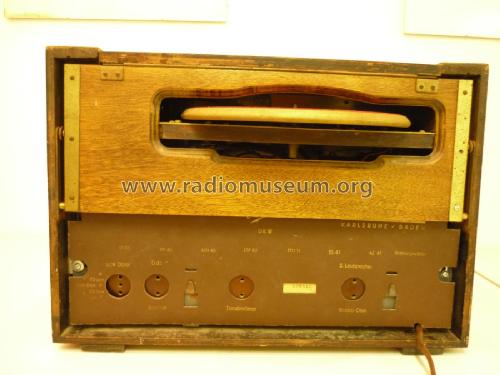

• Model: Violetta WH mit UKW - Tonfunk GmbH; Karlsruhe

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 340 x 280 mm / 19.3 x 13.4 x 11 inch

• Notes

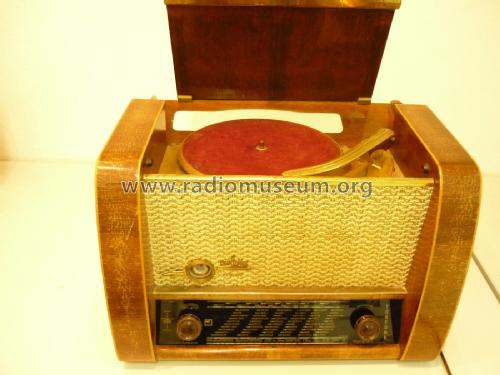

• Flankendemodulator für UKW. Plattenspieler mit Schwenkklappe im Holzgehäuse integriert. Tonabnehmer mit Stahlnadeln und Magnetsystem.

  Siehe auch Violetta Phono mit EQ80 und Violetta Fonosuper W400.

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Literature/Schematics (1)

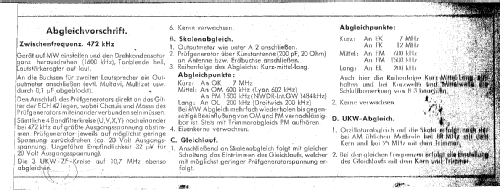

• -- Original-techn. papers. (Schaltplan, Abgleichvorschrift auf Geräte Rückwand)

• Author
• Model page created by Dieter Schulte-Kulkmann. See "Data change" for further contributors.
