• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20518

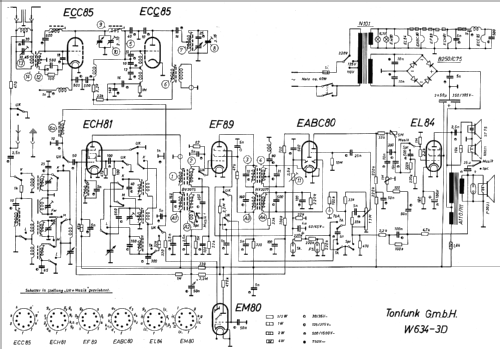

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: W634/3D - Tonfunk GmbH; Karlsruhe

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 640 x 790 x 380 mm / 25.2 x 31.1 x 15 inch

• Net weight (2.2 lb = 1 kg)
• 30.5 kg / 67 lb 2.9 oz (67.181 lb)

• Price in first year of sale
• 629.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56 / Radiokatalog Band 2, Ernst Erb
