Kleine Gloria W755

Tonfunk GmbH; Karlsruhe

Data
Forum
Pictures
Collections

  • Year
  • 1955/1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 20523

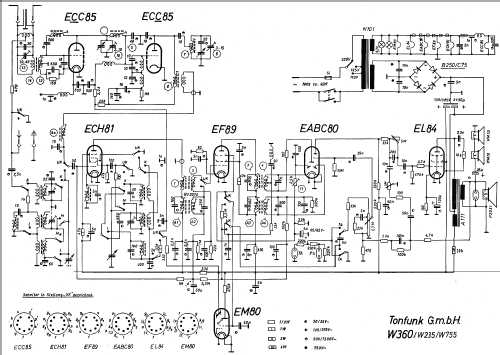

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Kleine Gloria W755 - Tonfunk GmbH; Karlsruhe
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 980 x 820 x 410 mm / 38.6 x 32.3 x 16.1 inch
  • Notes
  • Rundfunk-Chassis = W360.
  • Net weight (2.2 lb = 1 kg)
  • 49.1 kg / 108 lb 2.4 oz (108.15 lb)
  • Price in first year of sale
  • 769.00 DM
  • External source of data
  • Erb
