• Country
• Argentina

• Manufacturer / Brand
• Tonomac SAIC, Buenos Aires

• Year
• 1964 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149683

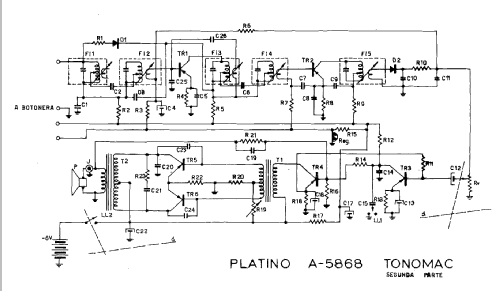

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• AF117 AF117 AF117 AF117 OC71 OC71 OC74 OC74 OA79 OA79

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage

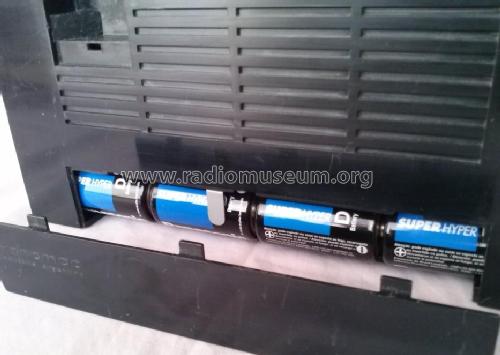

• Dry Batteries / D: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

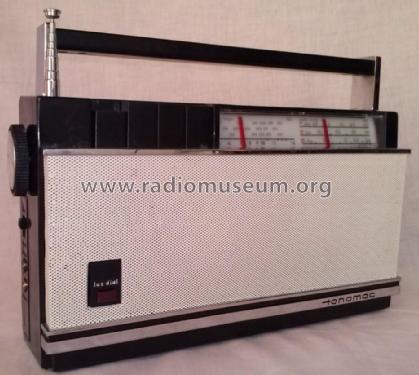

• Model: Platino A-5868 - Tonomac SAIC, Buenos Aires

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 200 x 80 mm / 11 x 7.9 x 3.1 inch

• Notes

• Ésta es la primera radio Tonomac de la serie Platino, cuenta con un regulador basado en un diodo de selenio marca "Selenar punto azul".

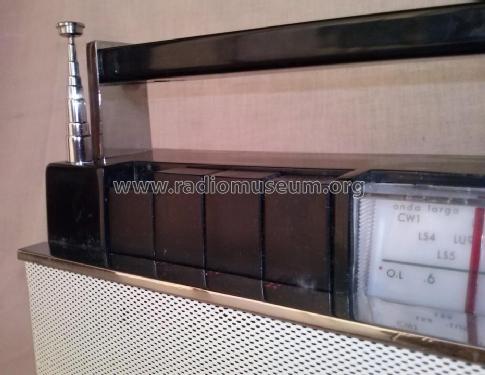

    Bandas: Con puntos indicadores (with dots)

   .  OL (OM)

   .. 49m

   :. 31m

   :: 25m

  ___________________________________________________________________________

  This is the first radio Tonomac Platino Series, featuring a regulator with selenium diode-based brand "Selenar blue dot".

  Wave bands: MW + 3 SW (49, 31 and 25 m).

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Carlos Eduardo Maidana. See "Data change" for further contributors.
