• Country
• Germany

• Manufacturer / Brand
• Tonomat Automaten; Neu-Isenburg/bei Frankfurt a.M.

• Year
• 1959

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 162790

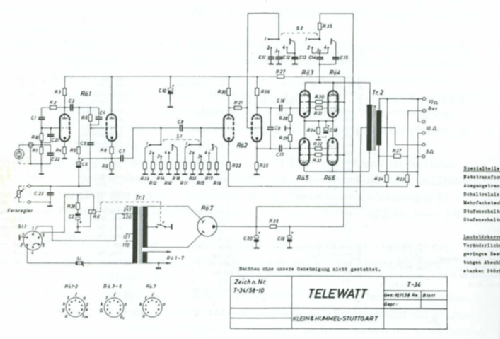

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Jukebox-Coin operated Phonograph

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org
• Model: Panoramic 200 - Tonomat Automaten; Neu-

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• Jukebox mit 200 Wahlmöglichkeiten, also 100 45 rpm Singles. Elac Tonabnehmer.

• Literature/Schematics (1)
• Musikboxen v. Adams/ Lukas/ Maschke

• Author
• Model page created by Nico Jacobsen. See "Data change" for further contributors.
