• Country
• United States of America (USA)

• Manufacturer / Brand
• Topp Import & Export, Inc.; Miami, FL

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 217505

• • Brand: Juliette

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm

• Power out
• 0.04 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

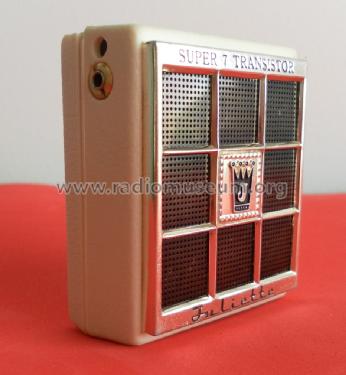

• Model: Juliette Super 7 Transistor TR-777 - Topp Import & Export, Inc.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 62 x 67 x 28 mm / 2.4 x 2.6 x 1.1 inch

• Notes
• Made in Hong Kong. Rear side labeled "Topp Miami Tokyo".

• Net weight (2.2 lb = 1 kg)
• 0.1 kg / 0 lb 3.5 oz (0.22 lb)

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
