Juliette Solid State 10 APR-210 Ch= 045-1001

Topp Import & Export, Inc.; Miami, FL

  • Year
  • 1970 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 340344
    • Brand: Juliette

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Juliette Solid State 10 APR-210 Ch= 045-1001 - Topp Import & Export, Inc.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 2.75 x 4.3 x 1.5 inch / 70 x 109 x 38 mm
  • Notes
  • Weight stated includes 9V battery.

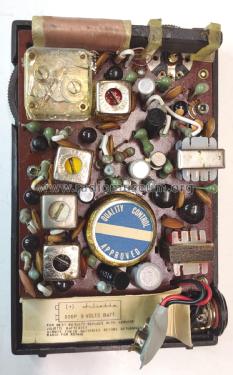

    Note: the parts layout diagram is shown on the bottom view, even though the components are on the top; most likely an error by the draftsman.

    Same chassis as the Juliette APR-211.

    Made in Hong Kong

  • Net weight (2.2 lb = 1 kg)
  • 0.56 lb (0 lb 9 oz) / 0.254 kg
  • Author
  • Model page created by Aldo Andreani. See "Data change" for further contributors.
