6 TP-309

Toshiba Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Toshiba Corporation; Tokyo

Year
1959

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
107854

- alternative name: Shibaura Engineering Works
- Brand: Tokyo Shibaura

Schematics

6 TP-309; Toshiba Corporation; (ID = 1684955) Radio — Toshiba Corporation; 6 TP-309 (3)

6 TP-309; Toshiba Corporation; (ID = 1585856) Radio — Toshiba Corporation; 6 TP-309 (2)

6 TP-309; Toshiba Corporation; (ID = 765889) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 765893) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 765895) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 262954) Radio — Toshiba Corporation; 6 TP-309 (2)

6 TP-309; Toshiba Corporation; (ID = 765890) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 765891) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 765896) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 778101) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 1585851) Radio — Toshiba Corporation; 6 TP-309 (2)

6 TP-309; Toshiba Corporation; (ID = 1585854) Radio — Toshiba Corporation; 6 TP-309 (2)

6 TP-309; Toshiba Corporation; (ID = 1585858) Radio — Toshiba Corporation; 6 TP-309 (2)

6 TP-309; Toshiba Corporation; (ID = 1585859) Radio — Toshiba Corporation; 6 TP-309 (2)

6 TP-309; Toshiba Corporation; (ID = 1585862) Radio — Toshiba Corporation; 6 TP-309 (2)

6 TP-309; Toshiba Corporation; (ID = 1585864) Radio — Toshiba Corporation; 6 TP-309 (2)

6 TP-309; Toshiba Corporation; (ID = 1585865) Radio — Toshiba Corporation; 6 TP-309 (2)

6 TP-309; Toshiba Corporation; (ID = 1585866) Radio — Toshiba Corporation; 6 TP-309 (2)

6 TP-309; Toshiba Corporation; (ID = 1585867) Radio — Toshiba Corporation; 6 TP-309 (2)

6 TP-309; Toshiba Corporation; (ID = 1585873) Radio — Toshiba Corporation; 6 TP-309 (2)

6 TP-309; Toshiba Corporation; (ID = 1992591) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 1992592) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 1992593) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 2223301) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 2223302) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 2223303) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 2223304) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 2223305) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 2223306) Radio — Toshiba Corporation; 6 TP-309 (1)

6 TP-309; Toshiba Corporation; (ID = 2223307) Radio — Toshiba Corporation; 6 TP-309 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
6

Semiconductors
2SA52 2SA53 2SA53 2SB54 2SB56 2SB56 1N60

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
5 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Dry Batteries / 1 x 9 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: 6 TP-309 - Toshiba Corporation; Tokyo

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
2.5 x 4.12 x 1.5 inch / 64 x 105 x 38 mm

Notes
Toshiba Model 6TP-309

Built in ferrite antenna, earphone jack.

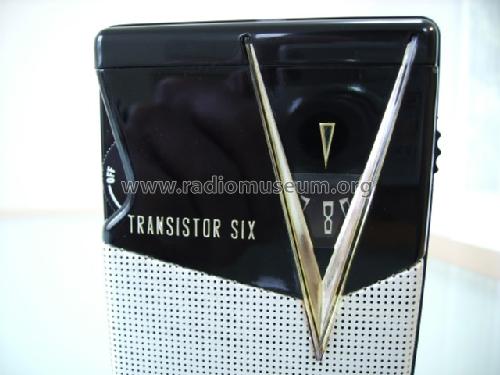

Case in black, white or chartreuse. Found most often with black case, although white case also is common. Known as "Deep V".

See also Murphy P62.

Price in first year of sale
38.00 $

Mentioned in
-- Collector info (Sammler)

Literature/Schematics (1)
Collector's Guide To TrR1 Bunis trans.94 (Model info and picture on page 279)

Literature/Schematics (2)
Transistor Radios

Author
Model page created by Peter Hoddow. See "Data change" for further contributors.

Other Models
Here you find 997 models, 921 with images and 214 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Toshiba Corporation; Tokyo
