Aurex PC-X88AD
Toshiba Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Toshiba Corporation; Tokyo
- Year
- 1981
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 162399
-
- alternative name: Shibaura Engineering Works
- Brand: Tokyo Shibaura
Tonkopf
Prospekt

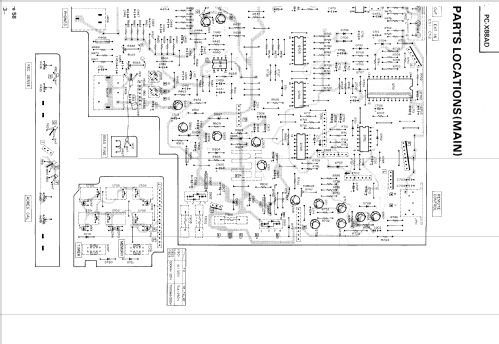

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player; Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Aurex PC-X88AD - Toshiba Corporation; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 420 x 110 x 280 mm / 16.5 x 4.3 x 11 inch
- Notes

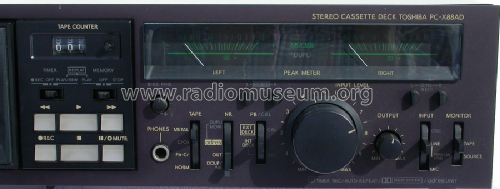

- Frontloading Stereo Cassette Deck.
20 - 20.000Hz, MPX Filter.
Wired Remote Control Toshiba/Aurex RM-15S.
- Net weight (2.2 lb = 1 kg)
- 4.8 kg / 10 lb 9.2 oz (10.573 lb)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
