BomBeat WX-1 RT-S983

Toshiba Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1982
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 159312
    • alternative name: Shibaura Engineering Works
    • Brand: Tokyo Shibaura

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 100-115; 120-127; 200-220; 230-250/12-15; 10 x 1,5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: BomBeat WX-1 RT-S983 - Toshiba Corporation; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 740 x 379 x 180 mm / 29.1 x 14.9 x 7.1 inch
  • Notes
  • Toshiba BomBeat WX-1, FM MW SW2 SW1 Stereo Radio Cassette Recorder RT-S983;
    Ghettoblaster-Boombox
    Featuring:
    Below fixed detachable speaker boxes with 12 cm woofers, 4 cm tweeters & 16 cm passive woofer cones (passive radiator), "adres" Automatic Dynamic Range Extension System, Soft Touch Mechanism;
    Tuner:
    FM: 88 - 108 MHz, AM: 525 - 1.605 kHz, SW2: 7.5 - 22 MHz, SW1: 2.3 - 7.5 MHz, fine tuning control, dial light, LED indicators for power/batt., FM stereo, tuning, two telescopic antennas,
    Amp:
    Separate L + R volume, bass-, treble & ESBS level, mono/stereo/wide selector,

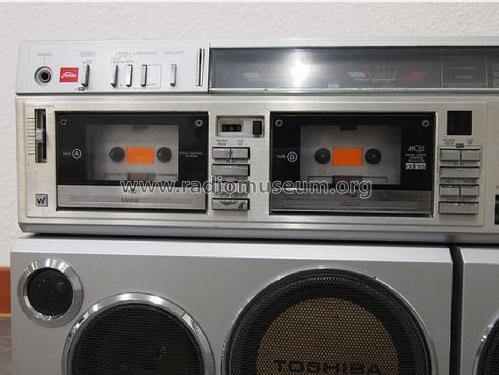

    Tapes:
    Twin recorder, MQJS - Music Quick Jumping Selector (tape B) programable, three step beat, manual L + R rec. level control, tape monitor & mixing volume, pitch control (tape A), tape counter (tape A), several dubbing functions, two VU meters, Nor/CrO2/Metal bias/eq, 20...15.000 Hz/17.000 Hz/18.000 Hz, mixing functions,
    Terminals:
    Front:
    Mic (rec./play), Rec. monitor (tape A), phono & aux in, phones,
    Rear:
    ext. antenna screw terminals in, mic. in, aux & phono in, 12 VDC in, 32 W mains power consumption,
    made in Japan, compare with jap. version RT-S98 MacKenzie.
  • Net weight (2.2 lb = 1 kg)
  • 14 kg / 30 lb 13.4 oz (30.837 lb)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
