Colour TV 258T7D

• Country
• Japan

• Manufacturer / Brand
• Toshiba Corporation; Tokyo

• Year
• 1987 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 319481

• • alternative name: Shibaura Engineering Works
  • Brand: Tokyo Shibaura

• Picture

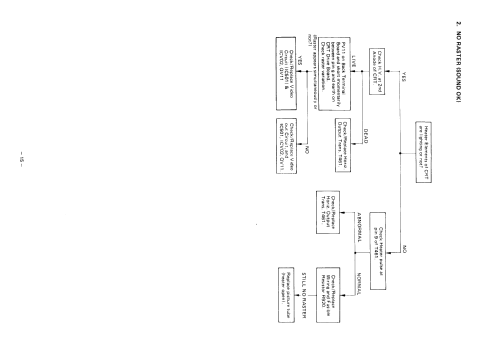

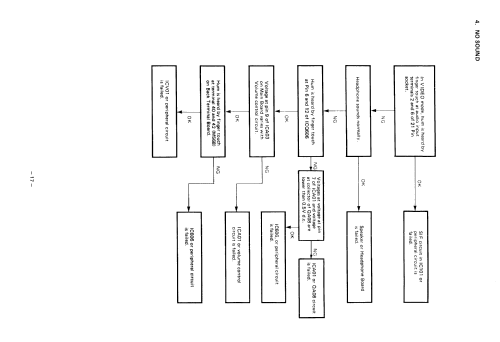

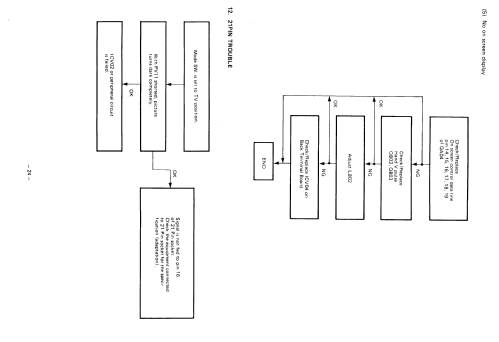

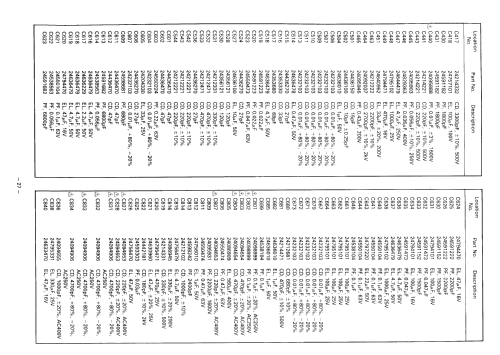

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

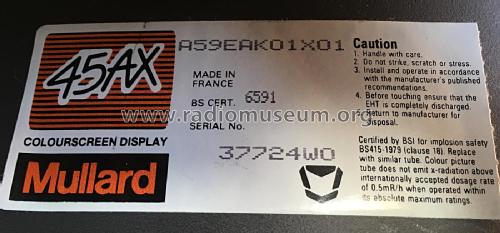

• A59EAK01X01

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Colour TV 258T7D - Toshiba Corporation; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 580 x 520 x 480 mm / 22.8 x 20.5 x 18.9 inch

• Notes
• • Power Input Rating: 138W
  • VHF Channels: E2 to E4, E5 to E12, S1, S2 to S20
  • UHF Channels: 21 to 69
  • Sound Output: 2x 10W
  • Speakers: 2x 120mm Woofer, 2x 40mm Tweeter

  Made in U.K. by Toshiba Consumer Products (UK) Ltd.



• Net weight (2.2 lb = 1 kg)
• 36 kg / 79 lb 4.7 oz (79.295 lb)

• Author
• Model page created by Ralf Rehbein. See "Data change" for further contributors.

• Other Models

• Here you find 996 models, 920 with images and 214 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Toshiba Corporation; Tokyo
