• Country
• Japan

• Manufacturer / Brand
• Toshiba Corporation; Tokyo

• Year
• 1979 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 225164

• • alternative name: Shibaura Engineering Works
  • Brand: Tokyo Shibaura

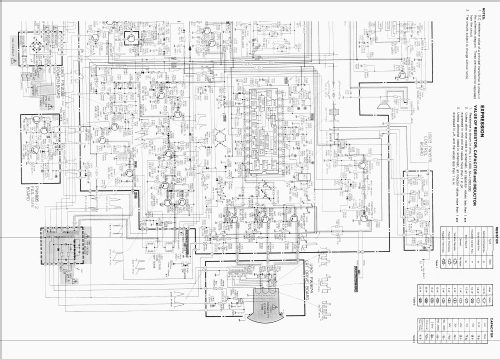

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 160AB22

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Batteries (any type) / 220 / 12-24 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Farbfernseher - Colour Television C-690 / BP600 TAP-911 - Toshiba Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 256 x 167 x 314 mm / 10.1 x 6.6 x 12.4 inch

• Notes

• Farbfernseher - PAL color TV. CCIR B/G VHF/UHF tuner with 12 presets. RF AV-in.

  35 W power consumption.

  Weight includes 1.3 kg battery pack.

  Made in Japan

• Net weight (2.2 lb = 1 kg)
• 8.1 kg / 17 lb 13.5 oz (17.841 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by a member from A. See "Data change" for further contributors.
