IC-700 (IC-700C)

Toshiba Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Toshiba Corporation; Tokyo

Year
1973–1976

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
121253

- alternative name: Shibaura Engineering Works
- Brand: Tokyo Shibaura

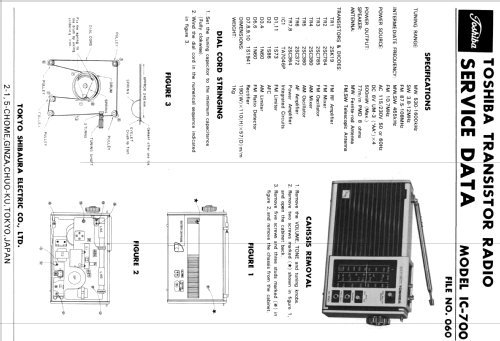

Schematics

IC-700 ; Toshiba Corporation; (ID = 1565892) Radio — Toshiba Corporation; IC-700 (3)

IC-700 ; Toshiba Corporation; (ID = 1565893) Radio — Toshiba Corporation; IC-700 (3)

IC-700 ; Toshiba Corporation; (ID = 1565894) Radio — Toshiba Corporation; IC-700 (3)

IC-700 ; Toshiba Corporation; (ID = 1565895) Radio — Toshiba Corporation; IC-700 (3)

IC-700 ; Toshiba Corporation; (ID = 1565896) Radio — Toshiba Corporation; IC-700 (3)

IC-700 ; Toshiba Corporation; (ID = 1565897) Radio — Toshiba Corporation; IC-700 (3)

IC-700 ; Toshiba Corporation; (ID = 1565898) Radio — Toshiba Corporation; IC-700 (3)

IC-700 ; Toshiba Corporation; (ID = 1563573) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 1598263) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 1563776) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 2409523) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 2409522) Radio — Toshiba Corporation; IC-700 (1)

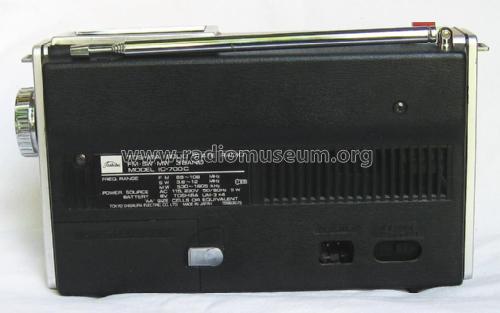

IC-700 ; Toshiba Corporation; (ID = 2409524) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 386888) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 765455) Radio — Toshiba Corporation; IC-700 (2)

IC-700 ; Toshiba Corporation; (ID = 780284) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 780285) Radio — Toshiba Corporation; IC-700 (1)
Ohne Schutztasche

IC-700 ; Toshiba Corporation; (ID = 780286) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 780287) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 780288) Radio — Toshiba Corporation; IC-700 (1)

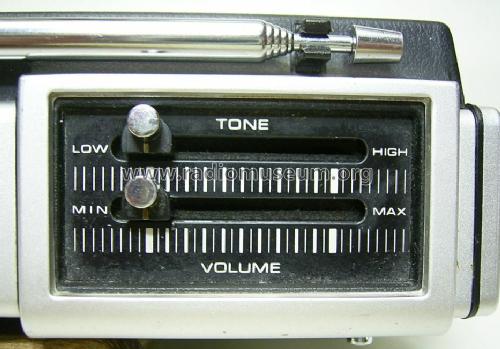

IC-700 ; Toshiba Corporation; (ID = 780289) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 1224637) Radio — Toshiba Corporation; IC-700 (1)

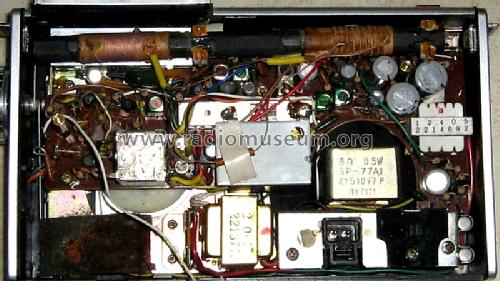

IC-700 ; Toshiba Corporation; (ID = 1224638) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 1652414) Radio — Toshiba Corporation; IC-700 (2)

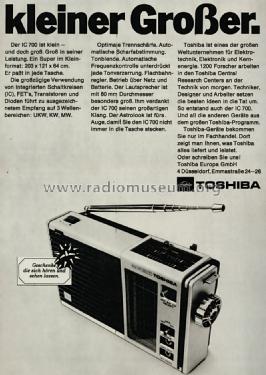

Original Werbeanzeige Jahrgang 1972

IC-700 ; Toshiba Corporation; (ID = 1713899) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 1713902) Radio — Toshiba Corporation; IC-700 (1)

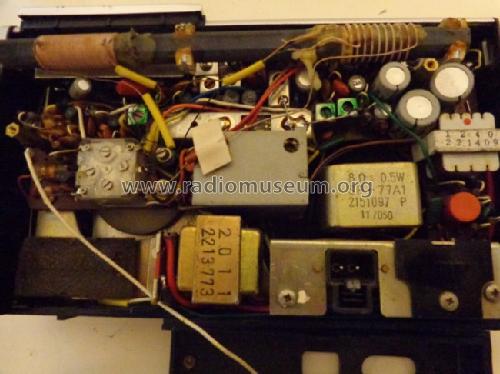

IC-700 ; Toshiba Corporation; (ID = 1713905) Radio — Toshiba Corporation; IC-700 (1)

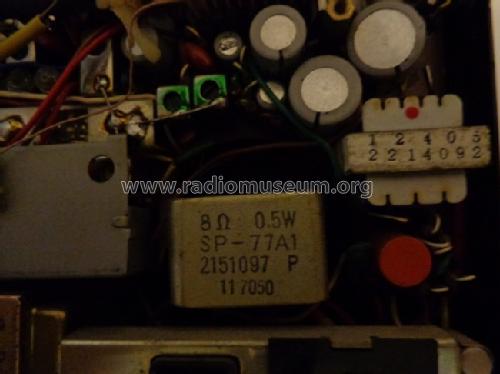

IC-700 ; Toshiba Corporation; (ID = 1713907) Radio — Toshiba Corporation; IC-700 (1)

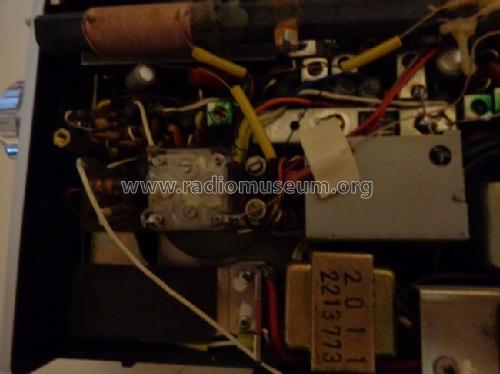

IC-700 ; Toshiba Corporation; (ID = 1713910) Radio — Toshiba Corporation; IC-700 (1)

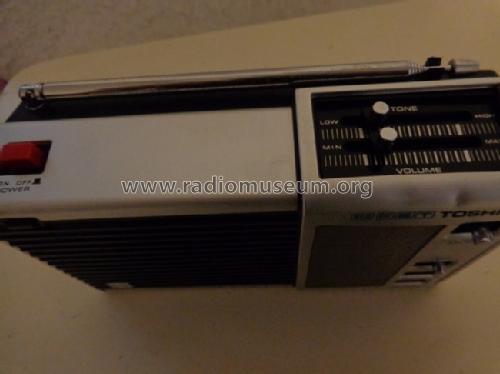

IC-700 ; Toshiba Corporation; (ID = 1713911) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 1894690) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 2106064) Radio — Toshiba Corporation; IC-700 (2)

IC-700 ; Toshiba Corporation; (ID = 2322088) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 2322089) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 2322090) Radio — Toshiba Corporation; IC-700 (1)

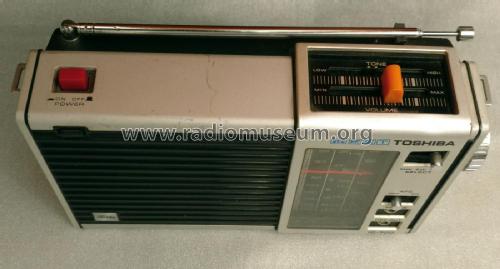

IC-700 ; Toshiba Corporation; (ID = 2322091) Radio — Toshiba Corporation; IC-700 (1)

IC-700 ; Toshiba Corporation; (ID = 2322092) Radio — Toshiba Corporation; IC-700 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
8

Semiconductors
2SK19 2SC785 2SC784 2SC380 2SC380 2SC372 2SB364 2SB364 TA7046

Main principle
Superheterodyne (common); ZF/IF 10700/455 kHz; 3 AF stage(s)

Wave bands
Broadcast, Short Wave plus FM or UHF.

Power type and voltage
Line / Batteries (any type) / 115; 230 / 4 x 1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.6 cm = 3 inch

Power out
0.7 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: IC-700 - Toshiba Corporation; Tokyo

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
190 x 110 x 57 mm / 7.5 x 4.3 x 2.2 inch

Notes
3-Band-Transistorradio mit AFC, Skalenkurzzeitbeleuchtung.
Empfangsbereich: MW 530 - 1605 kHz, KW 3,8 - 12 MHz, UKW 87,5 - 108 MHz.
Zubehör: Ledertasche, Ohrhörer mit Tasche, Netzkabel und vier Mignonzellen.

8 Transistoren und 1 IC (TA7046P).

Net weight (2.2 lb = 1 kg)
1 kg / 2 lb 3.2 oz (2.203 lb)

Mentioned in
-- Original prospect or advert

Literature/Schematics (1)
Radio- es TV- kapcsolások, 1975-77

Author
Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.

Other Models
Here you find 996 models, 920 with images and 214 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Toshiba Corporation; Tokyo
