• Country
• Japan

• Manufacturer / Brand
• Toshiba Corporation; Tokyo

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 126239

• • alternative name: Shibaura Engineering Works
  • Brand: Tokyo Shibaura

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BE6 12AV6 35W4 35C5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

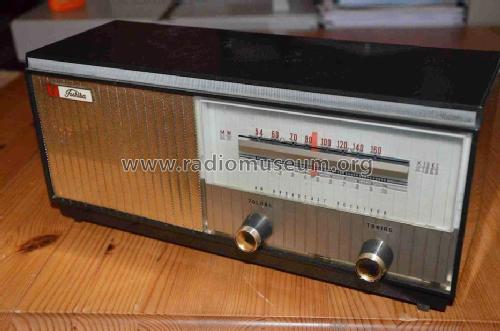

• Model: L-511 - Toshiba Corporation; Tokyo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 292 x 133 x 105 mm / 11.5 x 5.2 x 4.1 inch

• Notes

• Imported to US by Transistor World Corp.; NY. NY.

  Depth with knobs 123 mm. By removing the back plate, the device is disconnected from the mains. The back plate contains a heat conduction panel at the LF amplifier and rectifier tube area. AC/DC set with hot chassis! Heating current 150 mA series , 2 scale lamps 6.3V / 150mA, fixed antenna wire.

• Net weight (2.2 lb = 1 kg)
• 1.640 kg / 3 lb 9.8 oz (3.612 lb)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 660 Folder 10 10-1963)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
