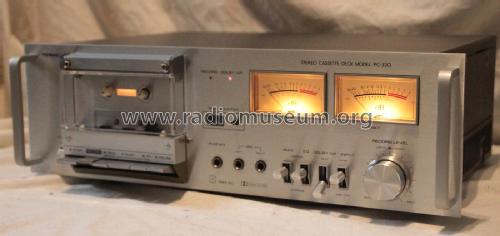

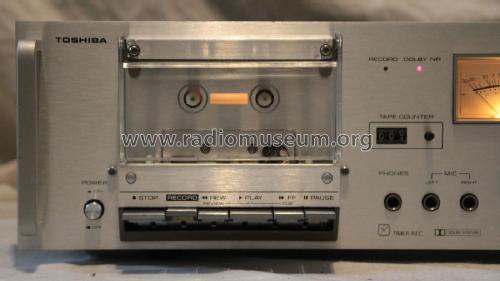

Stereo Cassette Deck PC-330

Toshiba Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1977/1978
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 177118
    • alternative name: Shibaura Engineering Works
    • Brand: Tokyo Shibaura

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Deck PC-330 - Toshiba Corporation; Tokyo
  • Shape
  • Rack
  • Dimensions (WHD)
  • 450 x 170 x 350 mm / 17.7 x 6.7 x 13.8 inch
  • Notes

  • Tape system: 4-track, two channel stereo
    Tape speed: 4.75 cm/s
    Record bias and erase: 85 kHz bias, AC erase
    Frequency response: 30 Hz-16 kHz
    Signal to noise ratio: 57 dB without Dolby
    - improved by 5 dB at 1 kHz and 10 dB at 5 kHz and above with Dolby
    Distortion factor: 0.9% at 0 dB at 400 Hz
    Wow and flutter: 0.07% weighted, WRMS
    Inputs:
        MIC 0.25 mV into 600 Ohms to 10 kOhms
        Line:100 mV into 50 kohms
        line DIN: in/out 40 kOhms
    Output:
        Line: 0.4 mV into 50 kOhms
        Headphones: 0.75 W into 8 Ohms

  • Net weight (2.2 lb = 1 kg)
  • 5.2 kg / 11 lb 7.3 oz (11.454 lb)
  • Source of data
  • - - Data from my own collection
  • Mentioned in
  • Trader Service Sheet 3299
  • Author
  • Model page created by Lukas Faoro. See "Data change" for further contributors.
