• Country
• Japan

• Manufacturer / Brand
• Toshiba Corporation; Tokyo

• Year
• 1982 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 230774

• • alternative name: Shibaura Engineering Works
  • Brand: Tokyo Shibaura

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SC1674 2SC1674 2SC838 2SC838 2SC838 2SC839 LA3210 TBA820

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110 - 120; 220 - 240 / 4 x 1,5 Volt

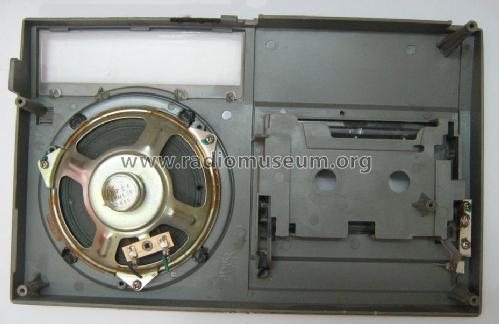

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1.5 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radio Cassette Recorder RT-4750 - Toshiba Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 295 x 185 x 90 mm / 11.6 x 7.3 x 3.5 inch

• Notes

• Made in Korea.

• Author
• Model page created by Daniel Rosha. See "Data change" for further contributors.
