• Country
• Japan

• Manufacturer / Brand
• Toshiba Corporation; Tokyo

• Year
• 1983 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149024

• • alternative name: Shibaura Engineering Works
  • Brand: Tokyo Shibaura

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• TA7236AP 2SC1923 2SK161 2SC1923 2SK61 2SC1815 2SA1015 2SC1815 2SC2655 2SC1815 2SC2655 2SC2878 2SC2878 TA7640 TA7668 CD4049 TA7343

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 50 Hz, 220-240 / D: 8 x 1.5 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 12 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

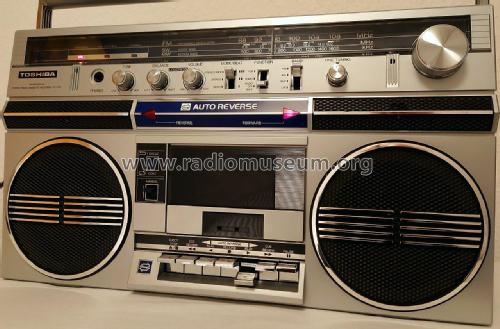

• Model: Stereo Radio Cassette Recorder RT-170S - Toshiba Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 460 x 263 x 119 mm / 18.1 x 10.4 x 4.7 inch

• Notes
• 4-Band-Stereo-Radio-Cassettenrecorder.
  100 - 10.000 Hz.
  Bass 120mm, HT 20mm.

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Source of data
• -- Original prospect or advert

• Mentioned in
• - - Manufacturers Literature (Toshiba Service Data File No. 110-286)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
