RT-251F
Toshiba Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Toshiba Corporation; Tokyo
- Year
- 1973 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 76180
-
- alternative name: Shibaura Engineering Works
- Brand: Tokyo Shibaura
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Power out
- 0.7 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: RT-251F - Toshiba Corporation; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 223 x 254 x 77 mm / 8.8 x 10 x 3 inch
- Notes
- Der Radiorecorder RT251F empfängt MW und UKW. Zum Lieferumfang gehören die Netzschnur und ein schaltbares Mikrofon.
NOTE:
The cassette-tape-recorder part was manufactured by Bigston Corp. (Japan).
Please compare with Cassetten-Recorder Bigston BR340.
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)

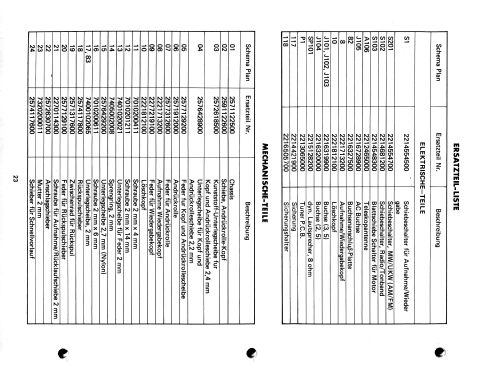

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
