Stereo Radio Cassette Player KT-4049

Toshiba Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1989 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 351238
    • alternative name: Shibaura Engineering Works
    • Brand: Tokyo Shibaura

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Batteries / addl. power jack / AA: 2 x 1.5 / 3 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Power out
  • 0.06 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Radio Cassette Player KT-4049 - Toshiba Corporation; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 85 x 129 x 36 mm / 3.3 x 5.1 x 1.4 inch
  • Notes

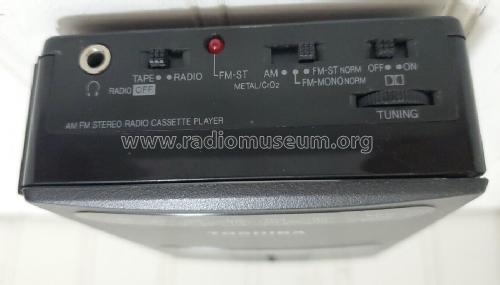

  • Portable AM FM Stereo Radio Cassette Player Model Toshiba KT-4049

    Metal Tape Capability
    Auto Reverse
    Direct Control Mechanism
    Light weight Headphones (Toshiba HR-M32)
    Earphone Jack
    Dolby NR
    3 Band Graphic Equalizer (50, 100, 10000 Hz +/- 10dB)

    Made in China






  • Net weight (2.2 lb = 1 kg)
  • 0.260 kg / 0 lb 9.2 oz (0.573 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Toshiba Service Data, File No. 100-353, May 1989)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
