Young Seven 7P-77S
Toshiba Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Toshiba Corporation; Tokyo
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 221423
-
- alternative name: Shibaura Engineering Works
- Brand: Tokyo Shibaura
- Number of Transistors
- 7
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage

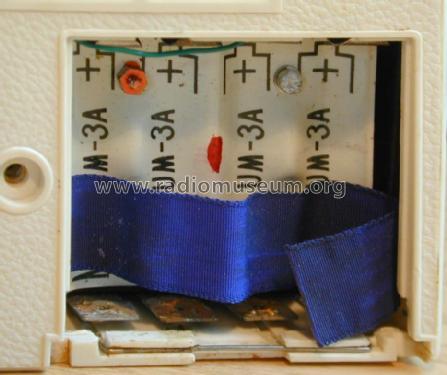

- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Young Seven 7P-77S - Toshiba Corporation; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 150 x 85 x 34 mm / 5.9 x 3.3 x 1.3 inch
- Notes
-
Toshiba Young Seven (Young 7) 7P-77S with carrying handle, earphone,
SW rod antenna, Toshiba speaker SP3202A.
SW: 3,8...12 MHz.
Gross weight incl full original packing 0.550 kg.
- Net weight (2.2 lb = 1 kg)
- 0.4 kg / 0 lb 14.1 oz (0.881 lb)
- Author
- Model page created by Eckhard Wegner. See "Data change" for further contributors.
