Indoor Omni Directional Antenna TL-ANT2405C
TP-LINK; Reading
- Country
- Great Britain (UK)
- Manufacturer / Brand
- TP-LINK; Reading
- Year
- 2012 ??
- Category
- Antenna (Aerial) or Coupler
- Radiomuseum.org ID
- 288724
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- No Power needed
- Material
- Various materials
- from Radiomuseum.org
- Model: Indoor Omni Directional Antenna TL-ANT2405C - TP-LINK; Reading
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 0 x 201 x 0 mm / 0 x 7.9 x 0 inch
- Notes
-

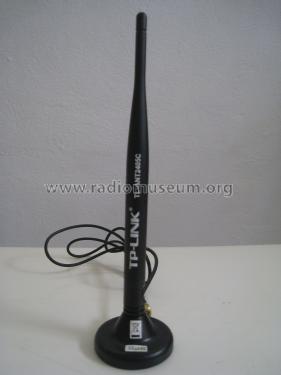

TP-LINK 2.4 Ghz 5 dBi Indoor Omni Directional Antenna mod. TL-ANT2405C
130 cm RG 174 coaxial connecting cable - RP-SMA Female connector.
It will work with most indoor wireless AP/router - impedance: 50 Ω
Polarization: linear/verticale - Beamwidth: horizontal 360° / vertical 32°
WSWR: 1.92 :1 Max - frequency range: 2,4/2,5 GHz
- Net weight (2.2 lb = 1 kg)
- 0.9 kg / 1 lb 15.7 oz (1.982 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
