• Country
• United States of America (USA)

• Manufacturer / Brand
• Trad Television Corp.; Asbury Park, NJ

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 313712

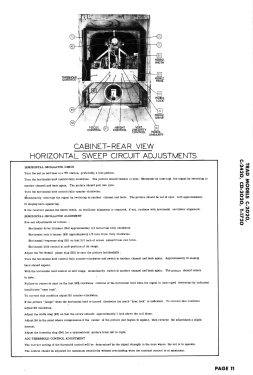

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6CB6 or 6AG5 6J6 6AG5 6AG5 6AG5 6AL5 6AG5 6K6GT 6AG5 6AU6 6AL5 6AT6 6V6GT 6SN7GT 6BL7GT 6SN7GT 6BG6G 6AX4GT or 6W4GT 1B3GT 5U4G 20CP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Power out
• 2 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: C-2020 - Trad Television Corp.; Asbury

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

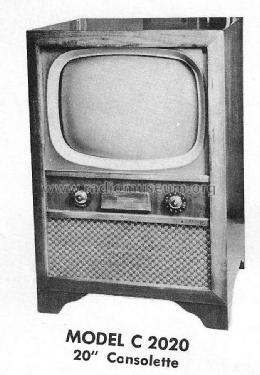

• Trad model C-2020 is a 20” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a VHF tuner and picture tube 20CP4.



• Price in first year of sale
• 219.95 USA

• Mentioned in
• - - Manufacturers Literature (Product Sheet)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 173, folder 14, dated 7-52)

• Author
• Model page created by Jon Kummer. See "Data change" for further contributors.
