T-20

Trad Television Corp.; Asbury Park, NJ

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Trad Television Corp.; Asbury Park, NJ

Year
1951 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
347726

Schematics

T-20; Trad Television Corp (ID = 2921145) Television — Trad Television Corp T-20 (3)

T-20; Trad Television Corp (ID = 2921146) Television — Trad Television Corp T-20 (3)

T-20; Trad Television Corp (ID = 2921147) Television — Trad Television Corp T-20 (3)

T-20; Trad Television Corp (ID = 2921148) Television — Trad Television Corp T-20 (3)

T-20; Trad Television Corp (ID = 2921149) Television — Trad Television Corp T-20 (3)

T-20; Trad Television Corp (ID = 2921150) Television — Trad Television Corp T-20 (3)

T-20; Trad Television Corp (ID = 2921151) Television — Trad Television Corp T-20 (3)

T-20; Trad Television Corp (ID = 2921152) Television — Trad Television Corp T-20 (3)

T-20; Trad Television Corp (ID = 2921153) Television — Trad Television Corp T-20 (3)

T-20; Trad Television Corp (ID = 2921154) Television — Trad Television Corp T-20 (3)

T-20; Trad Television Corp (ID = 2921155) Television — Trad Television Corp T-20 (3)

T-20; Trad Television Corp (ID = 2921156) Television — Trad Television Corp T-20 (3)

T-20; Trad Television Corp (ID = 2921157) Television — Trad Television Corp T-20 (3)

T-20; Trad Television Corp (ID = 2921158) Television — Trad Television Corp T-20 (3)

T-20; Trad Television Corp (ID = 2921144) Television — Trad Television Corp T-20 (2)

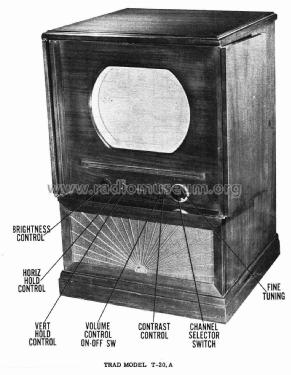

Picture from service manual.

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
21

Valves / Tubes
6AG5 6J6 6AG5 6AG5 6AG5 6AL5 6AG5 6K6GT 6AG5 6AU6 6AL5 6AT6 6V6GT 6SN7GT 6SN7GT or 6J5 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 16GP4

Main principle
Superhet with RF-stage

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Wooden case

from Radiomuseum.org
Model: T-20 - Trad Television Corp.; Asbury

Shape
Console with any shape - in general

Notes
Trad model T-20 16” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with a VHF tuner and picture tube 16GP4.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 133, folder 14, dated 5-51)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
