6TP-243

Trancel (Excel Trading Group), New York

Data
Forum
Pictures
Collections

  • Year
  • 1958 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 86618

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

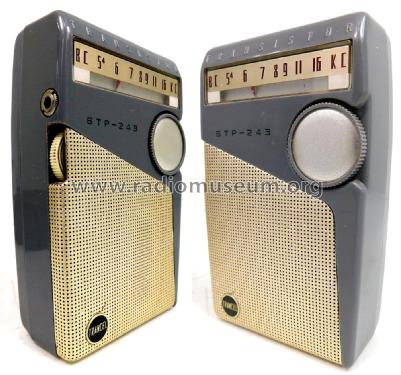

  • Model: 6TP-243 - Trancel Excel Trading Group,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 70 x 110 x 34 mm / 2.8 x 4.3 x 1.3 inch
  • Notes

  • Transistors: 2S52, 2S53, 2S54, 2S45, 2 x 2S56. This model was manufactured by Toshiba in Japan. It was imported into the USA by the Excel Trading Group and sold under their brand name "Trancel". It was also sold by Penny's of New York under their own name and by Toshiba in Japan under the "Toshiba" label (see 6TP-219 and other models repored in this  page).

  • Net weight (2.2 lb = 1 kg)
  • 0.2 kg / 0 lb 7 oz (0.441 lb)
