• Country
• United States of America (USA)

• Manufacturer / Brand
• Clarion, Transformer Corp. of America (TCA); Chicago, IL

• Year
• 1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 18488

• • Brand: Clarion

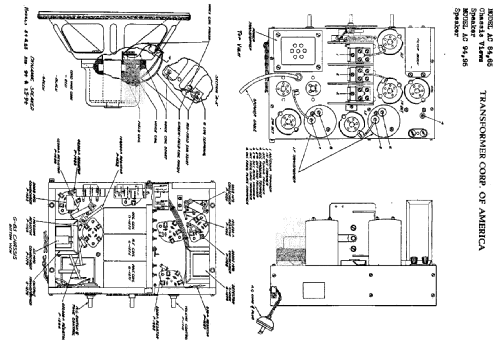

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 51 or 35 51 or 35 27 51 or 35 24 or 24A 47 80

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Clarion AC84 Ch= G-83 - Clarion, Transformer Corp. of

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 22.5 x 40 x 12.5 inch / 572 x 1016 x 318 mm

• Notes

• Line frequency : 50-60 cycl. Left-hand knob controls the volume. The right-hand knob controls the tone as well as being the on/off switch. The center knob is for tuning. This set is made for 60 cycle power.

• Price in first year of sale
• 69.50 $

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Literature/Schematics (1)
• Riders 1-13

• Literature/Schematics (4)
• The Transformer Folder.
