• Country
• United States of America (USA)

• Manufacturer / Brand
• Clarion, Transformer Corp. of America (TCA); Chicago, IL

• Year
• 1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63401

• • Brand: Clarion

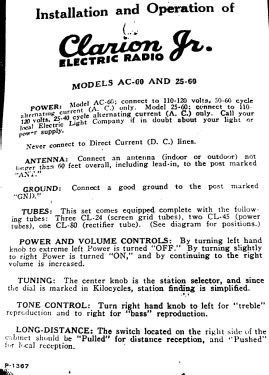

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

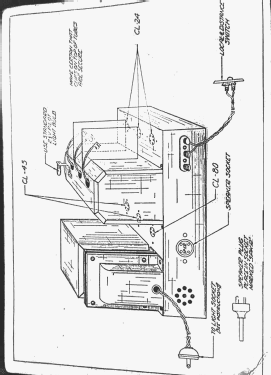

• Valves / Tubes
• 224 224 224 245 245 280

• Main principle
• TRF without regeneration; Screengrid 1926-1935

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Clarion Jr AC60 - Clarion, Transformer Corp. of

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 16 x 20 x 11 inch / 406 x 508 x 279 mm

• Notes

• One dial (primary tuning control knob) Line frequency:50-60 cycl.

  Price in Spain December 1930: 975 Pts. (Change 1930: 1 $ = 9,73 Pts).

• Price in first year of sale
• 63.30 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Riders 1-5, 6

• Literature/Schematics (2)
• Machine Age to Jet Age II (page 78.)

• Literature/Schematics (3)
• Cathedral & Tombstone Radios (page 266.)
