• Country
• United States of America (USA)

• Manufacturer / Brand
• Clarion, Transformer Corp. of America (TCA); Chicago, IL

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63438

• • Brand: Clarion

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6D6 6A7 6D6 76 6D6 42 80

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

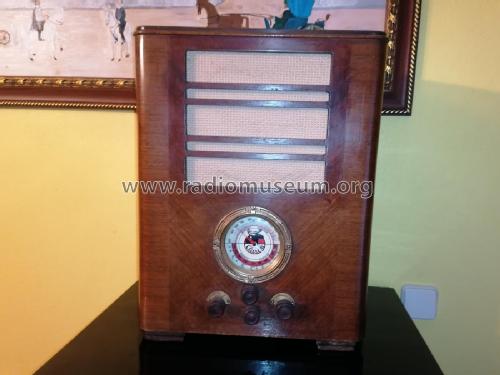

• Model: TC-39LW - Clarion, Transformer Corp. of

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 367 x 480 x 245 mm / 14.4 x 18.9 x 9.6 inch

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before

• Literature/Schematics (1)
• Riders 9-7
