1715 Ch= 72916
Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 324323

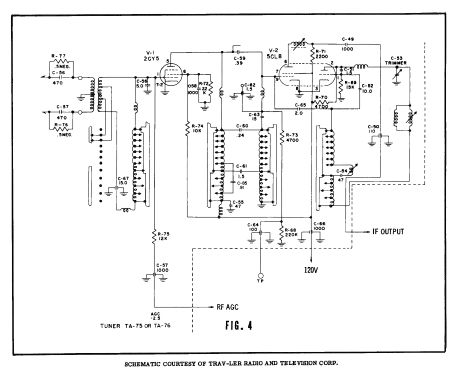

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 1715 Ch= 72916 - Trav-Ler Karenola Radio &
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Trav-Ler model 1715 is a 17" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 72916, VHF tuner TA-29 and picture tube 17AVP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 394 Folder 5 Production Changes Bulletin 204 dated 4-58)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
