• Country
• United States of America (USA)

• Manufacturer / Brand
• Trav-Ler Karenola Radio & Television Corp.(Travler); Chicago

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 356166

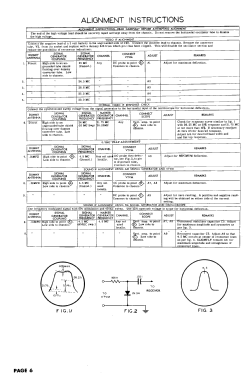

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6CB6 6J6 6AU6 6AU6 6AU6 6AL5 6BA6 6AU6 6AL5 6AV6 6K6GT 6C4 6SN7GT 6C4 6S4 6SN7GT 6BQ6GT 6W4GT 1X2 5U4G 20HP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: 217-10 Ch= 33A2 - Trav-Ler Karenola Radio &

• Shape
• Console with any shape - in general

• Notes

• Trav-Ler model 217-10 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 33A2, a VHF tuner and picture tube 20HP4.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 171, folder 11, dated 6-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
